12Kw Power 3500kg Weight 1250×1800×2350mm Dimension Stator Winding Inserting Machine and Coil Winding and Inserting Machine
পণ্যের সারসংক্ষেপ
Stator ID 40-100mm Coil Winding And Inserting Machine Product Description Coil Winding and Inserting Machine Stator ID 40-100mm ISO / SGS Audit Application Suitable for stators used in single phase motors, three phase motors, compressor motors, starter motors, washing machine motors, air conditioner...
পণ্য কাস্টম বৈশিষ্ট্যাবলী
বিশেষভাবে তুলে ধরা:
12Kw Power Stator Winding Inserting Machine
,3500kg Weight Coil Winding and Inserting Machine
,1250×1800×2350mm Dimension Stator Coil Inserting Machine
মৌলিক বৈশিষ্ট্য
উৎপত্তি স্থল:
চীন
পরিচিতিমুলক নাম:
SMT
সাক্ষ্যদান:
ISO/SGS Audit
মডেল নম্বার:
এসএমটি-আরকিউ 100
বাণিজ্যিক সম্পত্তি
ন্যূনতম চাহিদার পরিমাণ:
1 সেট
মূল্য:
আলোচনাযোগ্য
প্যাকেজিং বিবরণ:
সিলিং সঙ্গে পাতলা পাতলা কাঠের বাক্স
ডেলিভারি সময়:
8-10 সপ্তাহ
পরিশোধের শর্ত:
টি/টি, এল/সি
যোগানের ক্ষমতা:
1 পিসি/7-11 সপ্তাহ
পণ্যের বর্ণনা
Stator ID 40-100mm Coil Winding And Inserting Machine
Product Description
Coil Winding and Inserting Machine Stator ID 40-100mm ISO / SGS Audit
Application
Suitable for stators used in single phase motors, three phase motors, compressor motors, starter motors, washing machine motors, air conditioners, and more.
Information needed for stator winding inserting machine inquiry:
- Stator lamination drawing
- Stator stack drawing
- Wire connection drawing
- Stator application
Main Technical Features

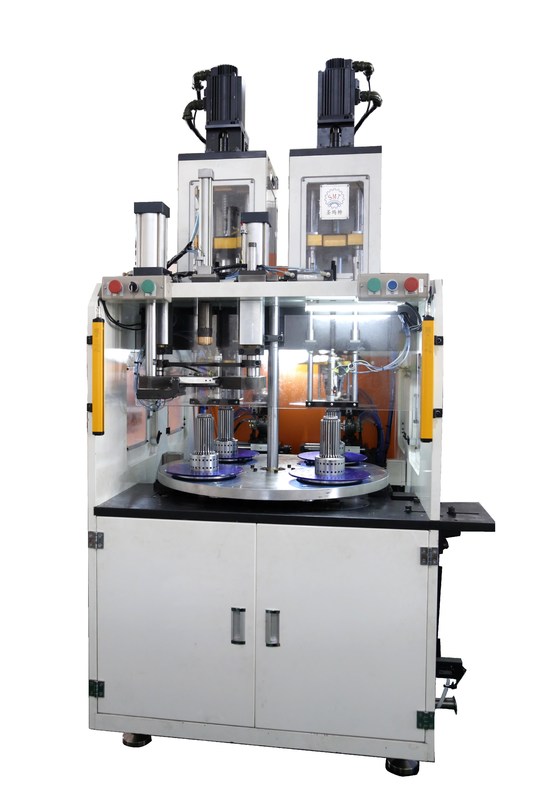

This machine automatically inserts coils and wedge paper into stators, featuring an HMI interface with fast speed, high stability, accurate positioning, and quick tooling change.
The machine includes 2 winding stations, 1 wedge making station, and 1 coil inserting station (4 stations total on rotary table). Coil inserting is achieved by double spindles individually, making it ideal for stators with high slot fill factor.
| Model | SMT-RQ100 |
|---|---|
| Core length | 20~100mm |
| Stator I.D | Φ40-100mm |
| Stator O.D | ≤160mm |
| Tooling stroke | ≤110mm |
| Compatible wire | CU/AL |
| Slot number range | 16~36slots |
| Power | 12Kw |
| Weight | 3500kg |
| Dimension | (L)1250×(W)1800×(H)2350mm |
Application
Primarily used in new energy automobile motors, servo motors, generators, three-phase motors, pump motors, compressor motors, household appliance motors, and other induction motors.
As a world leader, we specialize in stator and rotor core assembly, slot insulation, auto winding, auto inserting, auto fusing, auto resin impregnation, and other motor production technologies for various stator sizes and slot shapes.
Our Service
We prioritize both product quality and service to enhance your brand's global competitiveness. Whether you need machines, components, or OEM products, SMT Motor Equipment is your reliable partner.
We welcome opportunities to establish long-term business relationships with companies worldwide as suppliers, partners, and friends.
OEM/ODM
- Innovative technical team provides complete solutions tailored to unique customer requirements
- Specialized after-sale team offers rapid, door-to-door service to resolve all issues
- Extensive domestic and international service network ensures powerful support
- 24/7 customer service available through multiple communication methods
Production Line Profile
SMT provides professional consulting and turn-key project services for AC motor, DC motor, and BLDC motor manufacturing, including cost evaluation, manufacturing know-how, staff training, and complete project solutions.
About Us
Suzhou Smart Motor Equipment Manufacturing Co., Ltd is a high-tech enterprise specializing in motor manufacturing equipment design, production, and sales. With nearly 150 employees (including 30+ engineers), 20,000 square meters of facilities, and advanced production/test equipment, we design complete production lines for AC motors (home appliance, industrial, pump, rolling door, and automobile motors). Certified ISO9001:2000 in 2012.
